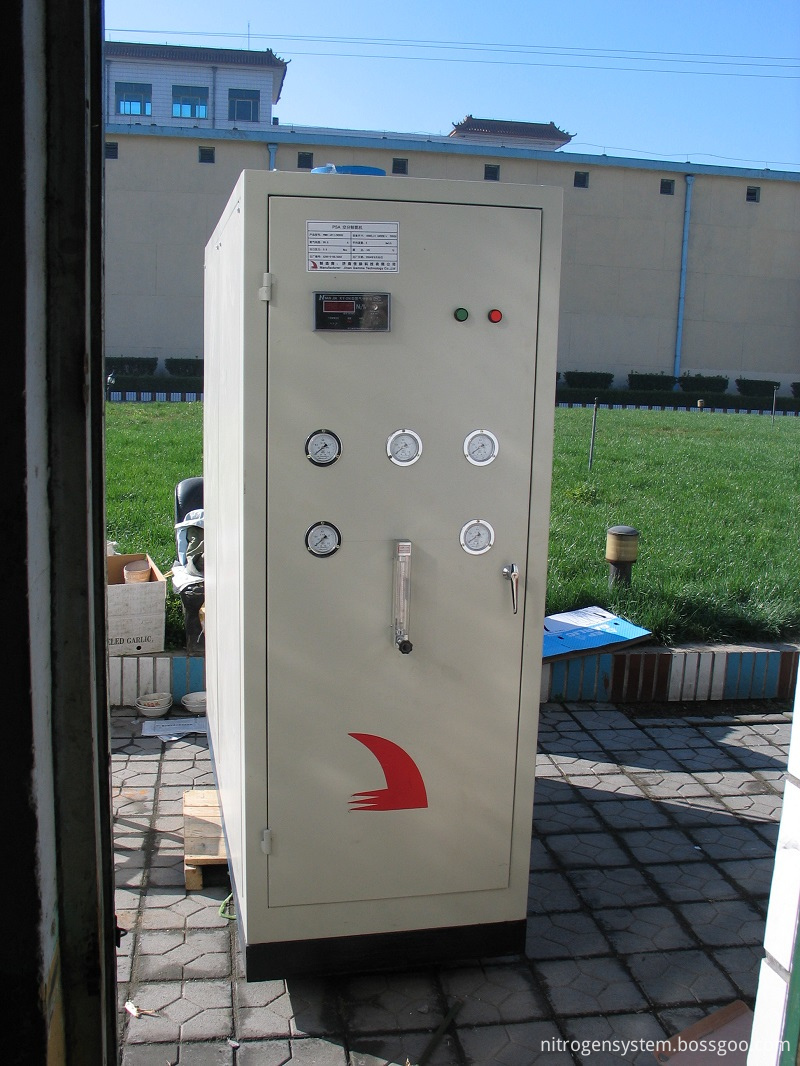

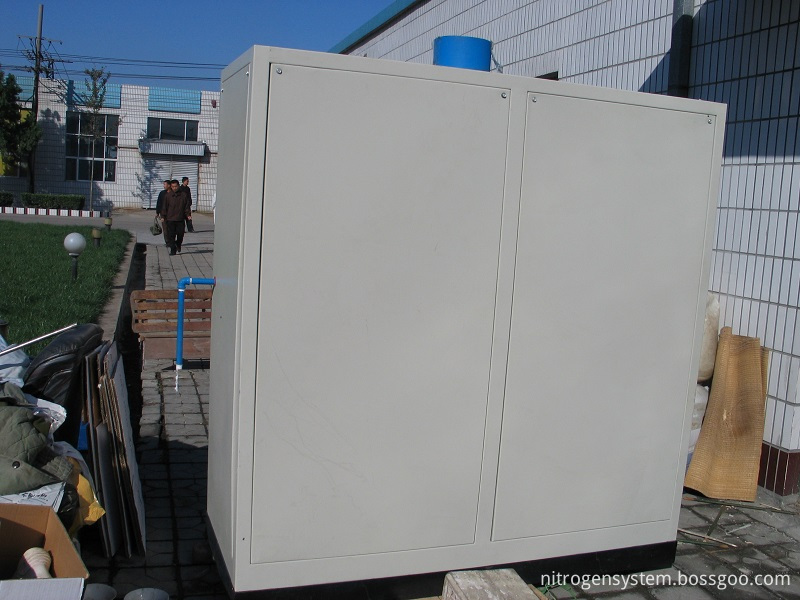

This is a mini Nitrogen Generator for our customer.
Nitrogen Compressor is one Gas Compressor used to increase nitrogen pressure. Normal nitrogen pressure at the outlet of nitrogen generator is 5-10 bars. For some customers, they need high puressure nitrogen such as 30 bars or 150 bars or 200 bars. Piston nitrogen compressor is the most popular type.
Nitrogen compressor specifications:
Code | Item | Unit | Specification |
1 | Model No. |
| VW-45/6-32 |
2 | Structure |
| Two stage, skid mounting |
3 | Medium |
| Nitrogen |
4 | Rated suction pressure | MPa(g) | 0.6 |
5 | Rated outlet pressure | MPa(g) | 3.2 |
6 | Capacity | Nm3/h | 45@ suction pressure=0.6MPa(g) |
7 | Rotation speed | rpm | 680 ※ |
8 | Motor power | kw | 5.5 ※ |
9 | Cooling type |
| Wind cooling |
10 | Drive type |
| Belt |
11 | Inlet temperature | ℃ | ≤35 |
12 | Outlet temperature | ℃ | ≤55 |
13 | Inlet joint |
| DN25 |
14 | Outlet joint |
| DN15 |
15 | Control |
| Automatic |
16 | Weight | KG | 360 ※ |
17 | Dimension(length*width*height) | mm | 1200*900*950 ※ |
18 | Installation |
| Flat concrete ground |
Nitrogen Compressor
Nitrogen Compressor,Oilless Nitrogen Compressor,Nitrogen Air Compressor,High Pressure Nitrogen Compressor
