What should you know about galvanized steel pipe

What is Galvanized Steel Pipe?

Galvanized Steel Plumbing pipes are pipes made of steel, and coated with zinc to prevent rusting. This is commonly done by dipping the pipes in a molten zinc bath. These pipes and fittings were commonly installed in homes prior to 1950 (some sites say it was used until the 1960s). Over time, the galvanized steel pipes begin to rust or corrode from the inside out, resulting in reduced water pressure and restricted water flow. This presents an increased risk of leaks or ruptures occurring in the pipes and the potential for flood damage. Corrosion also occurs to steel when it is connected directly to copper or brass.

What use of galvanized Steel Pipe ?

Steel is affordable, strong and readily worked by craftsmen, but it will quickly rust if not protected from the effects of moisture. One way to prevent steel from rusting is to immerse it in a hot zinc bath or to attach the zinc via an electroplating process; these processes are known as galvanizing.

The zinc coating will prevent the steel core from corroding by serving as a protective outer layer. In addition, zinc in low quantities is not toxic to humans, and that makes it an ideal metal for coating water pipes.

One of the most common materials used for water transport is galvanized steel. While galvanized piping has faithfully served customers for decades, it is now obsolete and may need to be replaced due to possible problems it can cause homeowners. Below is more information on galvanized pipe and why you should contact a plumber for assistance if you discover it in your home.

What about us?

Product categories of Galvanized Steel Pipe, we are specialized manufacturers from China, Galvanized Steel Pipe, Galvanized Iron Pipe suppliers/factory, wholesale high-quality products of Galvanized Steel Plumbing R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

Common specification of Steel Grating

1. Brief introduction of steel grating:

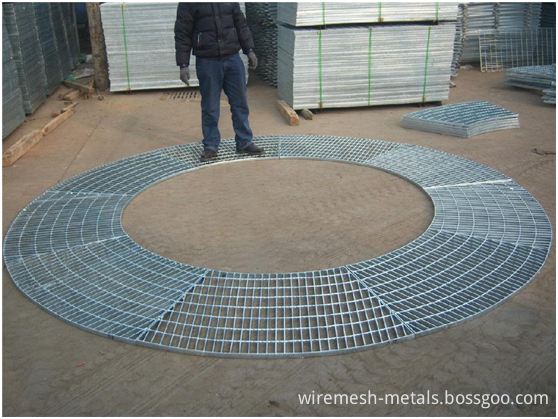

The steel Grating is also called steel grating, grating plate, steel grid plate etc. The steel Grating is to use steel according to certain spacing and cross arrangement, and welding for steel products with square lattice in the middle. The steel grating is a new type of building materials products, manufacturing technology from abroad. The steel grating is mainly used to do ditch cover, steel platform plate, steel ladder step plate. The bar steel grille plate commonly used by twisted steel, twisted steel specifications for 6mm, 8mm, 10mm and so on. The steel grating can be welded into different shapes according to drawings and specifications, in order to apply to different places such as open. Circular common, triangle equilateral trapezoid, cutting Angle and arc shape, so that the steel grid plate called special-shaped steel grating in our industry. The steel grid plate with carbon steel, carbon steel is generally Q235, in special industries Such as boiler rectification steel grid plate will use Q345 material. The steel grid plate surface is galvanized, can prevent oxidation. Also can be made of stainless steel. It is called Stainless steel grid plate when welded with stainless steel Flat Bar , stainless steel grid plate has the function with ventilation, lighting, cooling, skid proof, explosion-proof performance.

2. common specifications of steel grating:

1) longitudinal strip (Flat bar) distance: conventional 30,40,60 (mm); and non-standard spacing: 25,33,35/50 (mm) and so on.

2) horizontal stripe (Twist steel): normal spacing 50,100 (mm); and non - standard spacing: 38,76 (mm).

3) height 20~500 (mm)

4) thickness: 3-15 (mm)

There is various of the steel grid plate. A variety of occasions, environment, bearing requirements of the steel grid plate has different specifications, it is just these different plate spacing, height and thickness, the diameter of the connecting rod composed various steel grille plate specifications.

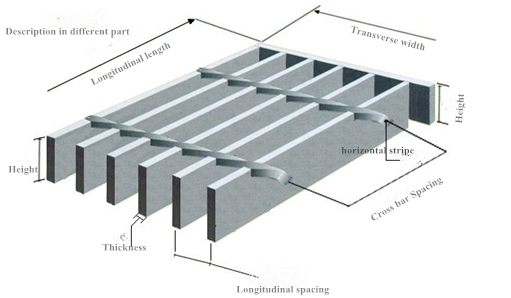

Below will be the introduction of different steel grating.. according to the marked graph can know all parts of different steel grating is what it looks like.

3. Standard Specification for steel grid plate

3. Classification of steel grid plate

1) According to the welding method can be divided into: welding steel grid plate (Figure 1), inserted a steel grid plate (Figure 2), Jack steel grating (Figure 3); pressure welding steel grid plate which needs large production pressure welding, pressure welding machine and verify that you have the strength of steel grid plate factory.

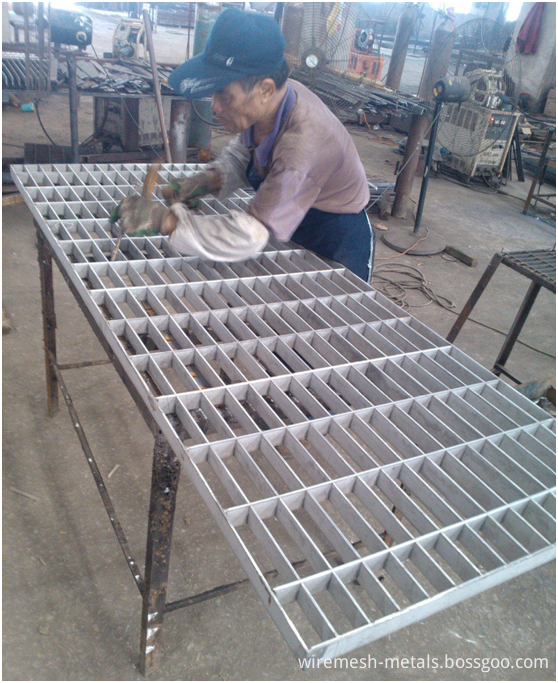

welding steel grid plate (Figure 1):

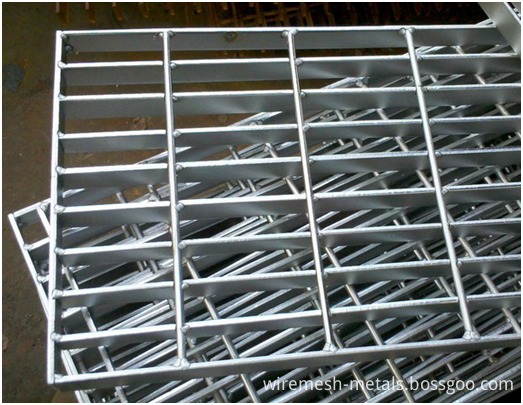

inserted a steel grid plate (Figure 2):

Jack steel grating (Figure 3):

2) According to the load of flat surface shape, can be divided into: flat steel grating (Figure 1), tooth type steel grating (Figure 2) and

"I" - shaped steel plate (Figure 3).

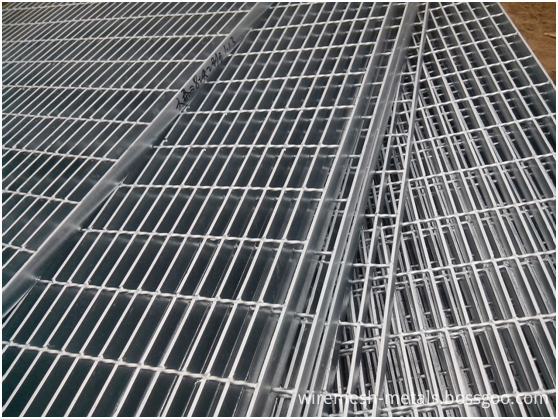

flat steel grating (Figure 1):

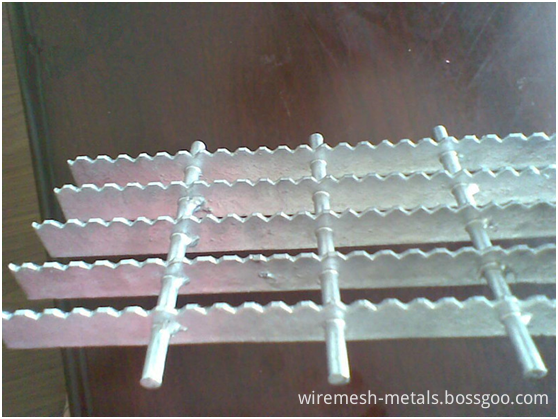

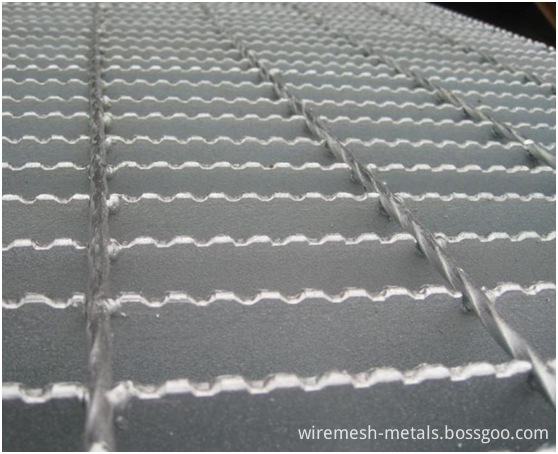

tooth type steel grating (Figure 2):

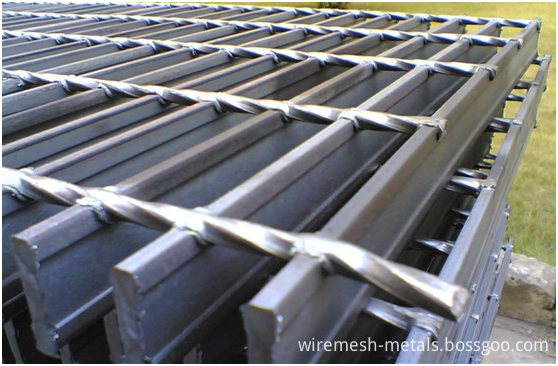

"I" - shaped steel plate (Figure 3):

3) According to their use can be divided into: general purpose steel grid plate, such as platform of steel grid plate, splicing steel grid plate and special purposes such as: trench cover (Figure 1), step plate (Figure 2).

trench cover (Figure 1):

step plate (Figure 2):

4. Steel grid plate according to the material is divided into: stainless steel grid plate ( Figure 1) and carbon steel grating plate. Stainless steel grid plate material usually has 304L, 316, carbon steel material for Q235, Q345A and so on.

stainless steel grid plate ( Figure 1):

5. Application of steel grid plate:

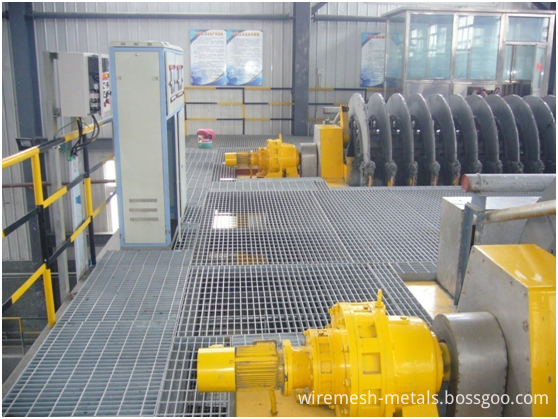

The steel grid plate is widely used in petroleum chemical industry, electric power, tap water, sewage treatment, port construction, modification, shipbuilding, self-propelled parking lot, municipal engineering, environmental engineering and other fields of the platform, walkway, trestle bridge, ditch cover, manhole covers, ladders, fence. Application of steel grille plate is very broad, Ladder step plate, cable trench cover, aluminum plate, ditch cover, the new building materials, steel grid plate is modernization plays an increasingly important role in the process of building. Above is a brief introduction of Steel grid plate for you. Please be free to consulte with us if there is any unclear for which kind of specification you can use in the actual situation. We can help you find the right steel grid plate specifications as per our rich production experiences.
